PlanScan 3650FB Flatbed Scanner

A0+ Flatbed Scanner: Professional scanning solution for large and fragile originals

The PlanScan 3650FB is the gold standard for archives, libraries and service providers.
Known around the world for quality, performance and durability.

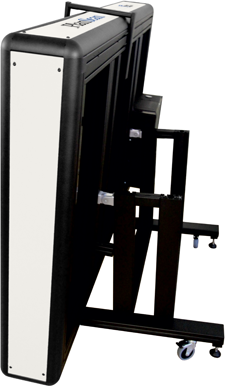

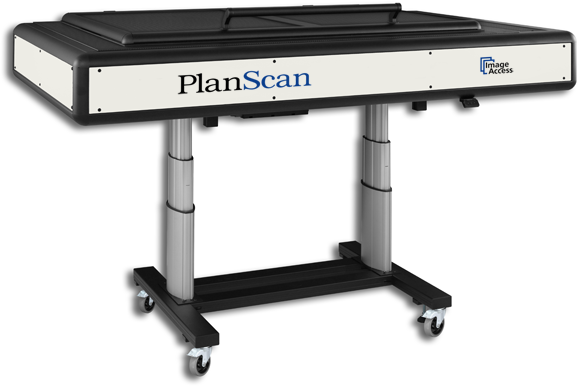

The A0+ flatbed scanner is suitable for scanning large and fragile originals that do not require a book cradle or cannot be handled by a feeder. Due to its roll-away mount it is easy to move the PlanScan 3650FB around - regardless of its size. Simply unlock the flatbed scanner, fold it up and off you go. Alternatively a motorized height adjustment is available in order to accommodate different working positions.

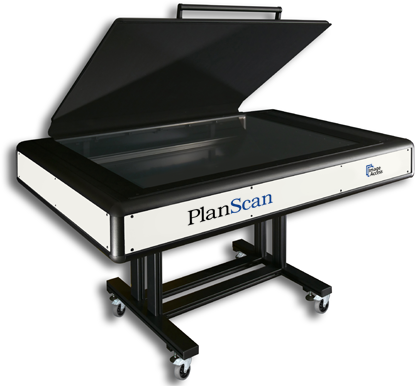

Operating the PlanScan 3650FB is as easy as operating a photo copier. Open the lid, place the document, close the lid and hit the scan button - that´s it! Alternatively the scanner can conveniently be operated via foot switch. The flatbed scanner is equipped with a special LED light illuminator that does not produce any ultraviolet or infrared radiation. Harmless and uniform illumination is guaranteed. The scanner can be operated independent from ambient light and do not irritate the operator´s eyes.

The PlanScan 3650FB A0 flatbed scanner comes with 3D scanning mode - a scanning technology which allows users to scan many different types of originals. It offers the capability of digitizing structured surfaces such as wood, rubber, plastic, fabrics, carpet and many more types of material. Finally, light reflecting items such as coins, seals, metal prints and silver or gold coated originals can be captured at the highest quality. The 3D scanning mode can be disabled and regular 2D scanning can be performed.

Interested? Use our Contact Form. It will be a pleasure to find the right solution for your needs.

PlanScan 3650FB Flatbed Scanner - Functions & Features

  • Scan area more than A0
  • 1200 dpi resolution
  • 12 sec. for A0+ Scan @ 300 dpi
  • Bidirektional scanning
  • Gentle originales scanning with an open lid
  • Prime and consistent scanning results
    independent from ambient Light
  • Free of IR and UV radiation
  • GBit TCP/IP Network Interface
  • 3D scanning mode
  • Compact size and mobility
  • Roll away mount with fold up function
  • Motorized height adjustment as an option

PlanScan 3650FB Flatbed Scanner - Markets & Applications

  • Libraries
  • Archives
  • Government and private commercial organizations
  • Universities
  • Information Facilities
  • Land registries
  • Cultural sector
  • Scanning of large and fragile originals
  • Archiving documents from national and local government agencies,
    registries and nonprofit organizations
  • Scan newspapers, periodicals, catalogs and magazines
  • Preserving books and sensitive historical documents

PlanScan 3650FB Flatbed Scanner - Product brochures

Click the links below to select a brochure.

PlanScan 3650FB Flatbed Scanner - Technical Data

Maximum Scan Area 1270 x 915 mm (50 x 36 inch), 16% more than DIN/ISO A0
Scanner Resolution 1200 dpi
Scan Speed DIN A0+ @ 300 dpi: 12 s, DIN A0+ @ 600 dpi: 24 s
Color Depth 48 bit color, 16 bit grayscale
Scan Output 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data and more
ICC Profiles Embedded for sRGB, Adobe RGB and native.
Individual profiling via web based Scan2ICC subscription
Camera System Three Tri-color CCD cameras, encapsulated and dust-proof
Light Source White LEDs, classified IEC 60825-1: class 1, IR and UV free
Lamp Lifetime 50,000 h typ. Lamps are covered by the Extended Warranty Option
Computer 64 bit Linux, 8 Gigabyte RAM, 320GB HDD
Interface GBit TCP/IP Network interface
Software Batch Scan Wizard, other Software optional available
Mount Assemblies Roll away mount with fold up function included
Dimension H x W x D: 950 x 1800 x 1200 mm (37 x 71 x 47 inch)
Weight 110 kg (243 lbs.)
Environment Operating temperature 5 to 40 °C (40 to 105 °F),
relative humidity 20 to 80% (non-condensing)

Technical changes, errors and omissions excepted. All information subject to change.
