Logo Image Access
Flatbed Scanners

A Lasting Brand in Professional Flatbed Scanner Solutions

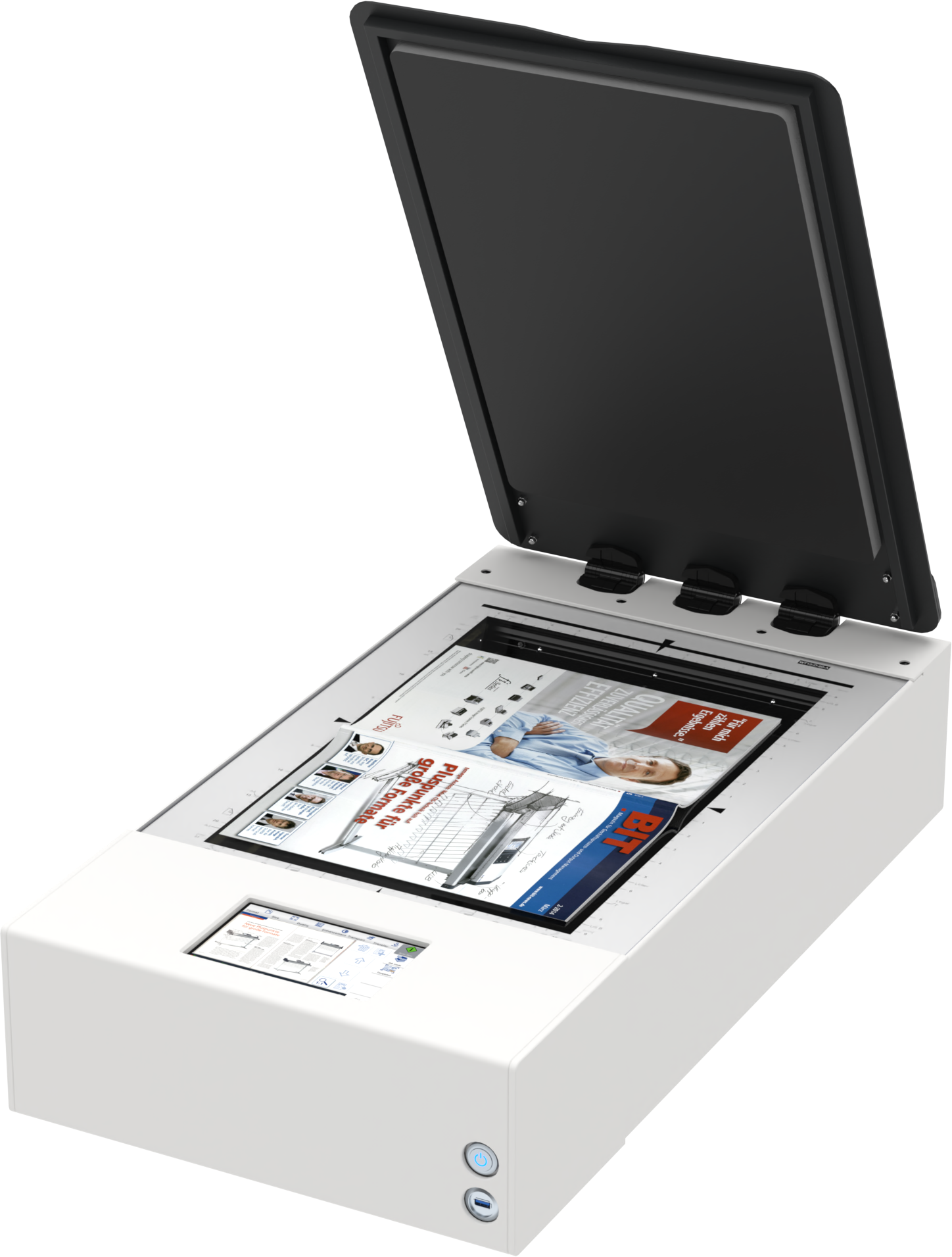

WideTEK WT12-650
Scanning Area
DIN A3+
Resolution in dpi
1200
Image Sensor
CCD
Scanning Time
3/6/12s
Scanning Mode
2D/3D
Backlight Unit
OPTION

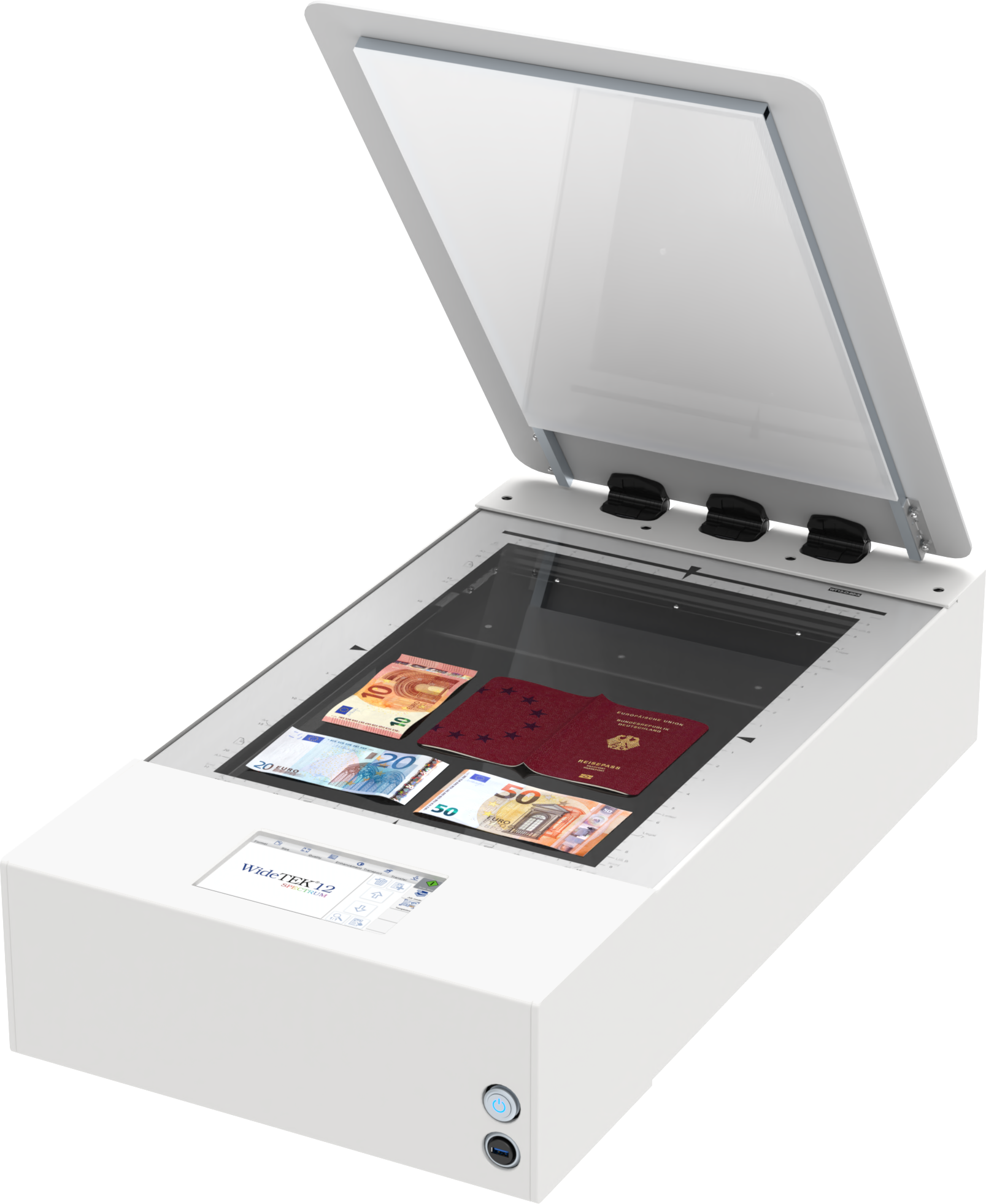

WideTEK WT12-SPECTRUM
Scanning Area
DIN A3+
Resolution in dpi
1200
Image Sensor
CCD
Scanning Time
3/6/12s
Scanning Mode
2D/3D
Light Source
UV/VIS/IR
WideTEK WT25-650
Scanning Area
DIN A2+
Resolution in dpi
1200
Image Sensor
CCD
Scanning Time
3/6/12s
Scanning Mode
2D/3D
Backlight Unit
OPTION

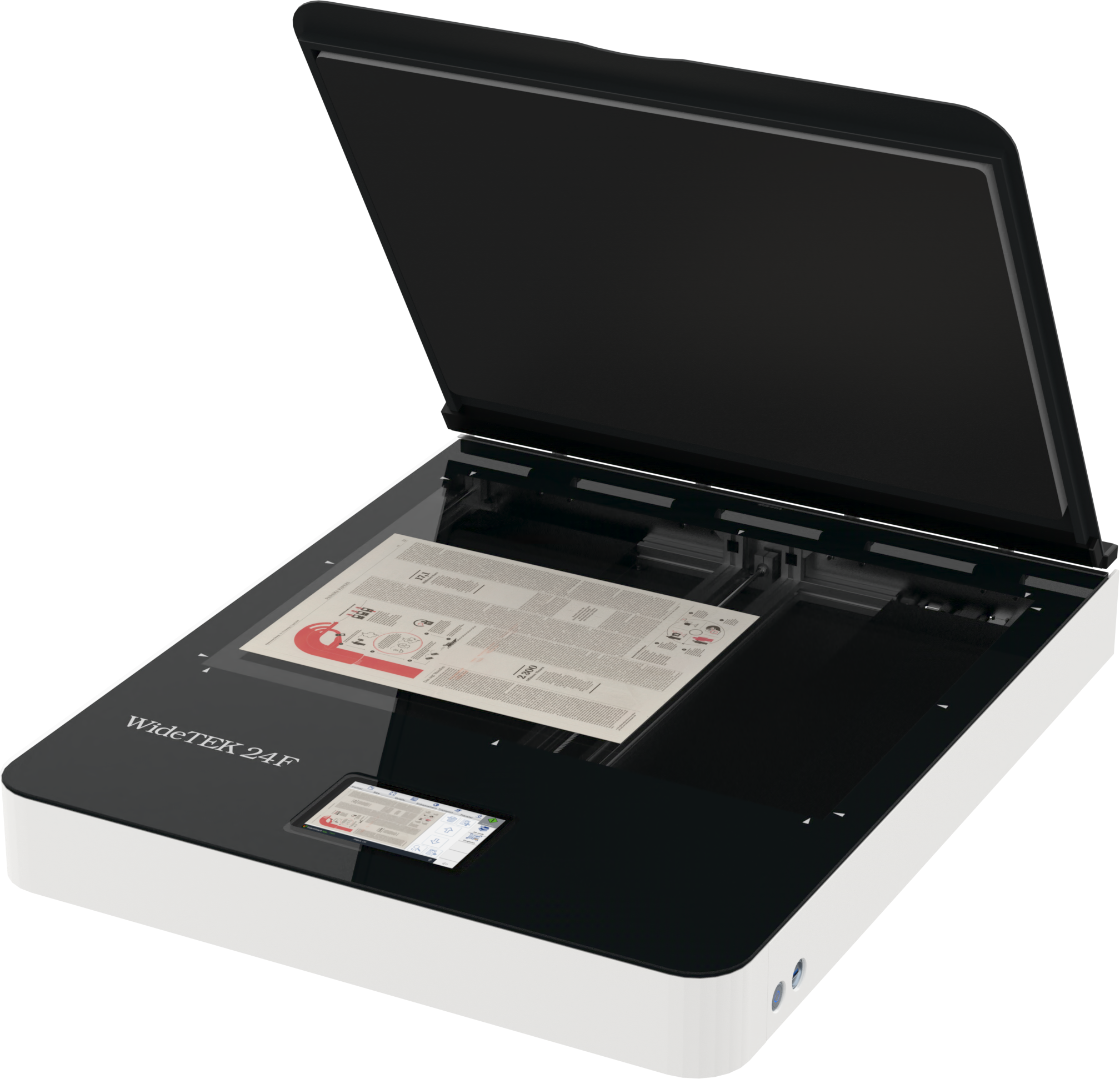

WideTEK WT24F-600
Scanning Area
DIN A2+
Resolution in dpi
1200
Image Sensor
CIS
Scanning Time
4/8s
Built in PC Memory
8 GB
Network Speed
1 Gbit/s

The color flatbed scanners, WideTEK® 12, WideTEK® 25 and WideTEK® 24F have been designed to produce fast scans in optimal image resolution, suitable to fit just about any application requirement.

Key Features and Functionality of WideTEK® Flatbed Scanners

  • FADGI, METAMORFOZE, ISO 19264-1 COMPLIANT
  • FULL SCAN IN LESS THAN 3 SECONDS (CCD SCANNER) AND LESS THAN 4 SECONDS (CIS SCANNER)
  • CCD MODELS CAPTURES 3D SURFACES, TEXTURES OF VARIOUS MATERIALS, BRAILLE PRINT
  • LED ILLUMINATION, NO IR/UV RADIATION
  • 1200 x 1200 DPI SCANNER RESOLUTION
  • INTEGRATED 64BIT LINUX, INTEL® CORE™ I3 GENERATION 8 PROCESSOR, 8 GB RAM
  • GIGABIT TCP/IP NETWORK INTERFACE
  • SUPPORTS SRGB, ADOBE RGB, NATIVE COLOR SPACES
  • SMALL ENOUGH TO FIT ON ANY DESKTOP
  • MULTITOUCH SCSREEN FOR SIMPLIFIED OPERATION
  • INTEGRATED WALK UP SCANNING SOFTWARE
  • USB PORT 3.0 FOR WALKUP SCANNING
  • AUTOMATIC CROP AND DESKEW
  • REAL TIME DISPLAY OF SCANNED IMAGES
  • VIRTUAL RESCAN, MODIFY IMAGES WITHOUT RESCANNING
  • EASY INSTALLATION VIA SCAN2NET® TECHNOLOGY

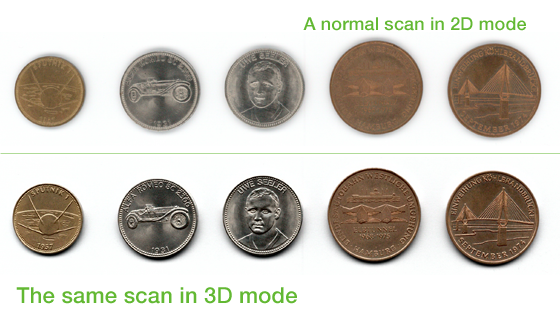

WideTEK® 12 and WideTEK® 25 are the only wide format flatbed scanners which also capture 3D surfaces in a quality suitable for inspection and quality control but compact enough for your desktop. The 3D scanning mode opens many new opportunities in the web presentation, printing and industrial inspection markets by capturing the texture of surfaces so perfectly that the scan on a screen looks like the real object.




Comparison Table of the Key Specifications of WideTEK® Flatbed Scanners


WideTEK WT12-650
Scanning Area
DIN A3+
Resolution in dpi
1200
Image Sensor
CCD
Scanning Time
3/6/12s
Scanning Mode
2D/3D
Backlight Unit
OPTION
WideTEK WT12-SPECTRUM
Scanning Area
DIN A3+
Resolution in dpi
1200
Image Sensor
CCD
Scanning Time
3/6/12s
Scanning Mode
2D/3D
Light Source
UV/VIS/IR
WideTEK WT25-650
Scanning Area
DIN A2+
Resolution in dpi
1200
Image Sensor
CCD
Scanning Time
3/6/12s
Scanning Mode
2D/3D
Backlight Unit
OPTION
WideTEK WT24F-600
Scanning Area
DIN A2+
Resolution in dpi
1200
Image Sensor
CIS
Scanning Time
4/8s
Built in PC Memory
8 GB
Network Speed
1 Gbit/s
